Stationary grease supply kit with electronic dosing system CONTROLLER 5.0 which allows the preselection of grease quantities to be supplied. This unit is suitable for industrial applications in which a recurrent precision of dosage is required on points and in sections that are continuously working and need a constant fl ow of lubricant. Free fl ow outlet available. The unit also includes a timer and a data recording of the dispensed amount.

CONTROLLER 5.0

– Bluetooth or USB cable.

– Precise and constant control

– PC controlled remote delivery management

– Real-time remote delivery visualization

– Data storage

– Transaction history

– Print report

– Customizable receipt with company logo, order number, dispensed quantity, date and time, additional description fields.

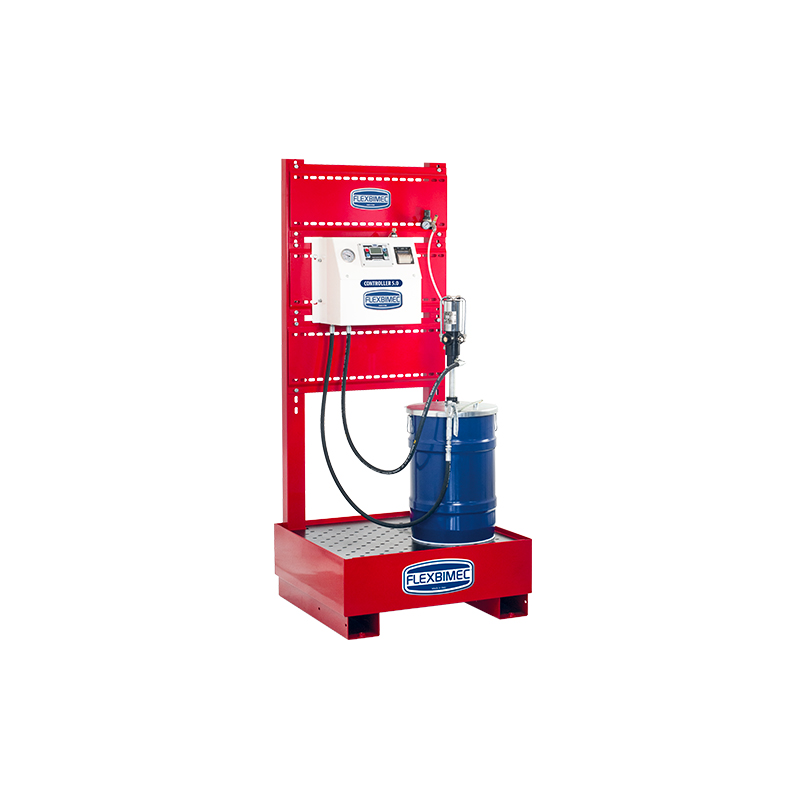

Stationary grease supply kit with electronic dosing system CONTROLLER 5.0.

The kit is composed of:

– Tank Service Base for 1 drum of 180 kg, art.no. 8525, with metal mounting rack;

– Pneumatic grease pump 25:1, art.no. 4082;

– Pressure regulator and air filter with moisture separator, art. no. 7180;

– Metal drum cover, ø 600 – 560 mm, art. no. 4308;

– Vulcanized follower plate, ø 590 – 540 mm, art. no. 4319VU;

– Electronic oval gears fl ow meter with pulse transmitter, art.no. 8733;

– 3 m – rubber hose SAE 100 R1 AT, 1/2”, art.no. 4803;

– Grease control gun with rigid outlet, art.no. 4204;

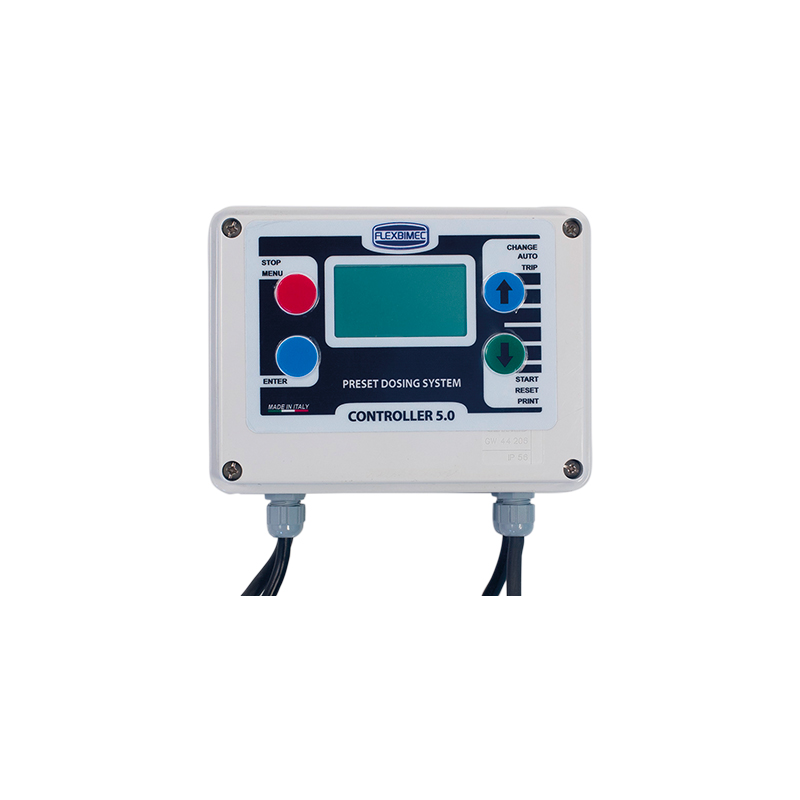

– Control unit for dosing system CONTROLLER 5.0 with keypad and display;

– Thermal printer for printing tickets with data of each performed delivery;

– Electronic control switch (ON/OFF – START) with transformer 230 VAC – 24 VDC.
