Stationary pneumatic waste oil suction systems - Automatic
Download the catalog
Don't forget to download the general catalog to get all the information you need!
8304
Encased, wall – mounted, electropneumatic suction unit for the use with waste oils and similar liquids, composed of a pneumatic 1:1 – piston pump art. no. 7180, vacuometer, electronic unit for the control of the suction process, solenoidactuated shut-off valve for the deactivation of the pump, push button for the activation of the suction process, power supply / transformer unit 230 VAC – 24 VDC, 1.5 m – suction hose and kit of suction probes in different diameters.
The suction cycle is structured as follows:
– Switch-on of the pump;
-Suction of the liquid and transfer into a storage tank;
– Automatic switch-off of the pump after finishing the suction process.
Additional information
| Pressure compressed air | |
|---|---|
| Power | |
| Max vacuum | |
| Compression ratio | |
| Max compressed air consumption | |
| Outlet pressure | |
| Weight |
8306

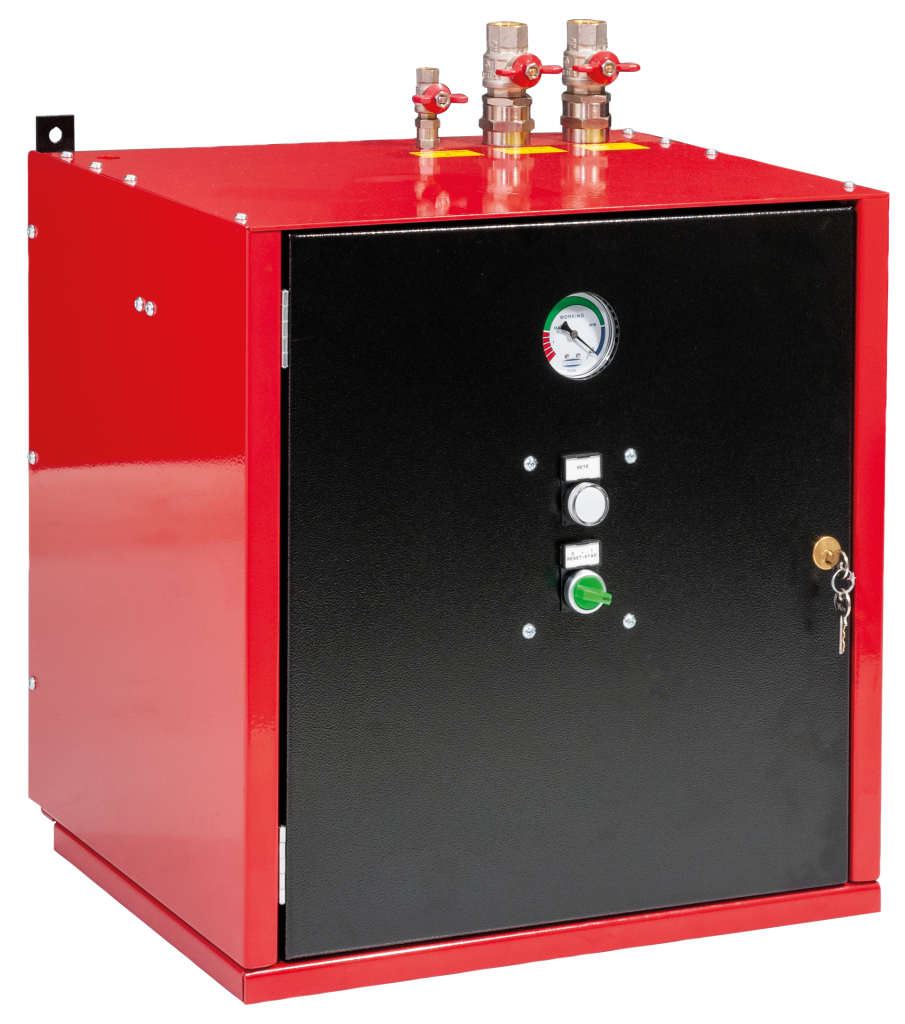

Waste oil suction unit such as art. no. 8304, but with pneumatic double diaphragm pump instead of pneumatic piston pump.
Additional information
| Pressure compressed air | |
|---|---|
| Power | |
| Max vacuum | |
| Compression ratio | |
| Max compressed air consumption | |
| Outlet pressure | |
| Weight |
8308
Waste oil suction unit such as art. no. 8304, but with hose reel, art. no. 9090, with 10 m – suction hose 1/2” instead of 1.5 m – suction hose and with wall-mounted drip tray.
Additional information
| Pressure compressed air | |
|---|---|
| Power | |
| Max vacuum | |
| Compression ratio | |
| Max compressed air consumption | |
| Outlet pressure | |
| Weight |
