Mobile waste oil suction system
Download the catalog
Don't forget to download the general catalog to get all the information you need!
2995
Flexible suction probe, ø 5 mm, length 800 mm.
Additional information
| Ø suction probe | |
|---|---|
| Suction speed at oil temperature 18°C | |
| Suction speed at oil temperature 60°C |
2998
Waste oil suction units, consisting of a collection container with a pneumatic Venturi valve by which a vacuum of up to 0.8 bar inside of the container can be created when compressed air at a pressure of 7 – 10 bar is connected on it.
The waste oil can be sucked with appropriate suction probes or suction adapters inserted in the dip-stick tube of the motor. For an ideal result the oil temperature should not be less than 60 – 80°C during the suction process.
The unit can be used also autonomously since it does not require a continuous air supply.
Additional information
| Ø suction probe | |
|---|---|
| Suction speed at oil temperature 18°C | |
| Suction speed at oil temperature 60°C |
3024
Mobile waste oil suction unit, with collection container of 24 l capacity, including level gauge, suction hose, kit of suction probes in different diameters, suction adapters and storage bowl.
The unit can be discharged manually by taking off the cap on top of the container.
3025
Same as art. no. 3024, but the unit can be discharged pneumatically by connecting it to compressed air through a discharge hose with curved outlet tube.
3027
Mobile waste oil suction unit, with collection container of 24 l capacity and transparent inspection chamber of 6.5 l capacity, including level gauge, suction hose, kit of suction probes in different diameters, suction adapters and storage bowl. The unit can be discharged pneumatically by connecting it to compressed air through a discharge hose with curved outlet tube.
The transparent inspection chamber allows to check the quality and the quantity of the sucked oil. In order to always keep a good visibility into the chamber, the unit is equipped with a device that permits to clean the internal surface by sucking a small quantity of diesel or another non-aggressive cleaning agent.

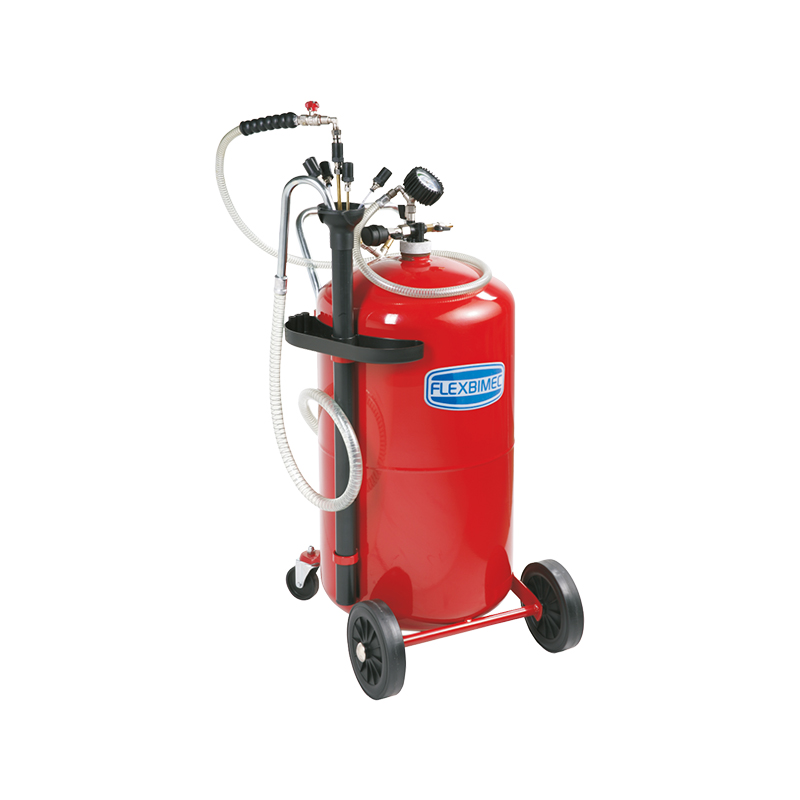

3080
Mobile waste oil suction unit, with collection container of 90 l capacity, including level gauge, suction hose, kit of suction probes in different diameters, suction adapters and storage bowl.
The unit can be discharged pneumatically by connecting it to compressed air through a discharge hose with curved outlet tube.
3090
Mobile waste oil suction unit, with collection container of 90 l capacity and transparent inspection chamber of 10 l capacity, including level gauge, suction hose, kit of suction probes in different diameters, suction adapters and storage bowl. The unit can be discharged pneumatically by connecting it to compressed air through a discharge hose with curved outlet tube.
The transparent inspection chamber allows to check the quality and the quantity of the sucked oil. In order to always keep a good visibility into the chamber, the unit is equipped with a device that permits to clean the internal surface by sucking a small quantity of diesel or another non-aggressive cleaning agent.
3173
Mobile waste oil gravity drainer, consisting of wide collection bowl in painted steel of 10 l capacity, art. no. 3290, incl. removable anti splash grid, height-adjustable, telescopic tube with 2” x 28 mm – bung adapter, shut-off valve and heavy duty trolley for max. 208 l – drums, art. no. 4389.
3176
Mobile waste oil gravity drainer, suitable for the use under lifts, with collection container of 110 l level gauge, two fixed wheels and two castors, with wide collection bowl in painted steel of 10 l capacity incl. removable anti splash grid, 1.6 m discharge hose ø 40 mm for a wider collection capacity.

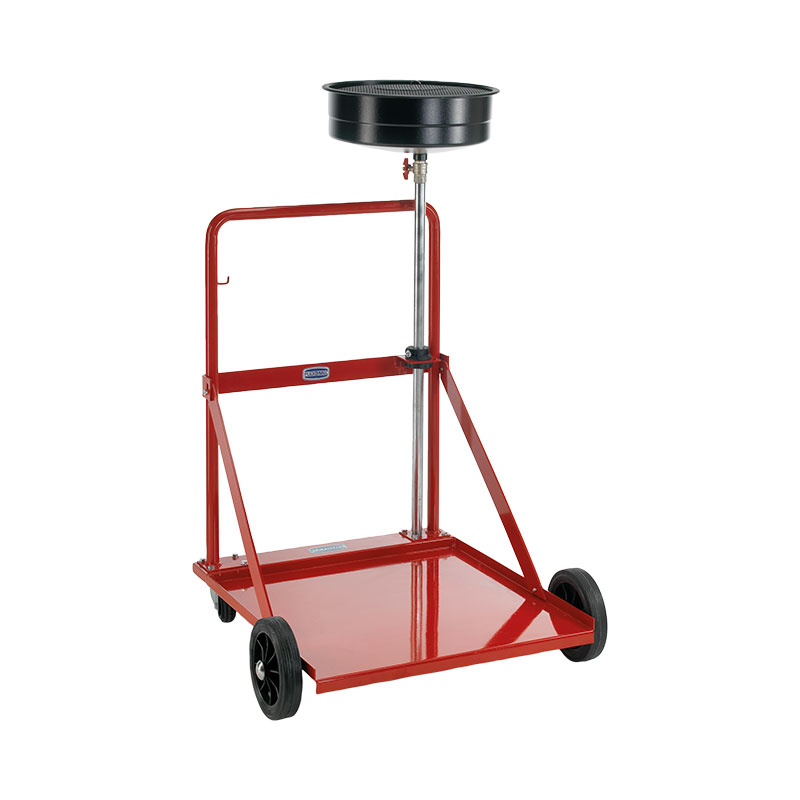

3178
Mobile waste oil gravity drainer, consisting of wide collection bowl in painted steel of 10 l capacity, art. no. 3290, incl. removable anti splash grid, height-adjustable, telescopic tube with 2” x 28 mm – bung adapter, shut-off valve and trolley for max. 208 l – drums, art. no. 4380.
3179
Mobile waste oil gravity drainer, suitable for the use under lifts, with collection container of 90 l capacity, level gauge, two fixed wheels and two castors, with wide collection bowl in painted steel of 10 l capacity incl. removable anti splash grid, 1.6 m discharge hose.
Additional information
| Capacity cleaning basin | |
|---|---|
| Max extension height collection bowl | |
| Capacity collection container | |
| Max. collection quantity | |
| Outlet pressure | |
| Weight | |
| Dimensions (W-P-H) (mm) |
3183
Mobile waste oil gravity drainer, suitable especially for the waste oil collection from motorbikes. Consisting of wide, rectangular collection bowl (dimensions 700 x 250 mm) of 80 mm height incl. removable anti splash grid, assuring an easy access between lift and motorbike, collection container of 65 l capacity, level gauge, two fixed wheels and two castors. The unit can be discharged pneumatically by connecting it to compressed air through a discharge hose with curved outlet tube.
