Electronic oil flow meters series Neptune X

Download the catalog

Don't forget to download the general catalog to get all the information you need!

[wpf-filters id=4]

2817/RF

Electronic oval gears preset flow meter for antifreeze, series URANUS, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	50 bar (725 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	2 kg
Power	3 x 1,5 V
Series	SERIES 4TTPS MERCURY – URANUS

request info

2819

Electronic oval gears preset fl ow meter for oil, series MERCURY, with control gun, rubber protection guard, trigger guard, rigid outlet ø 16 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	50 bar (725 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	2 kg
Power	3 x 1,5 V
Series	SERIES 4TTPS MERCURY – URANUS

request info

2819/RF

Electronic oval gears preset fl ow meter for oil, series URANUS, with control gun, rubber protection guard, trigger guard, rigid outlet ø 16 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	50 bar (725 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	2 kg
Power	3 x 1,5 V
Series	SERIES 4TTPS MERCURY – URANUS

request info

2962/X

Electronic oval gears flow meter for oil, series NEPTUNE X, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	Neptune X

request info

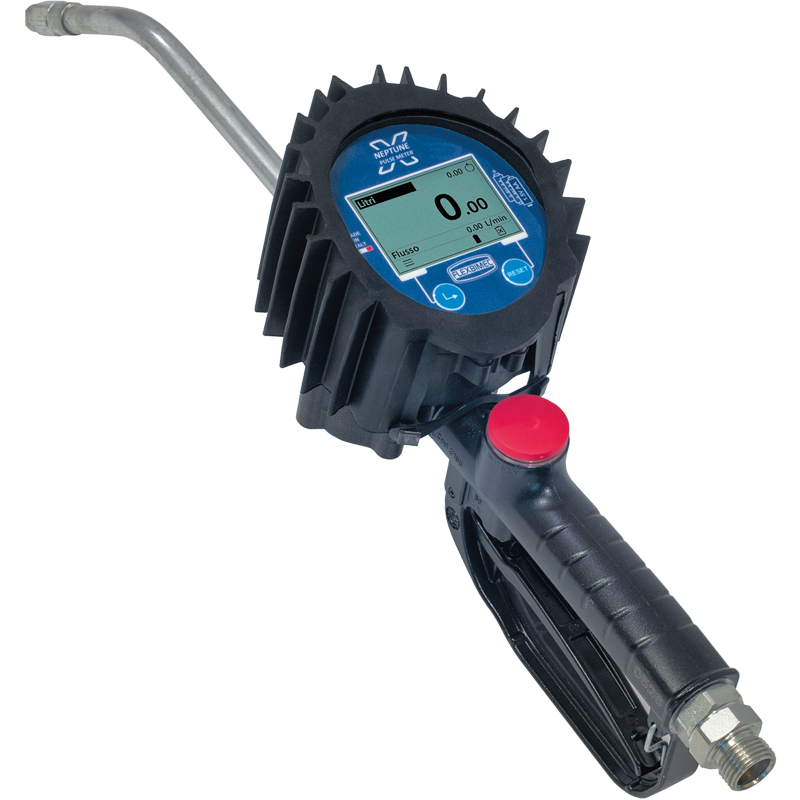

2963/X

Electronic oval gears flow meter for antifreeze, series NEPTUNE X, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	Neptune X

request info

2964/AG/X

Electronic oval gears flow meter for antifreeze, series NEPTUNE X, with control gun, flexible rubber outlet, ø 1/2”, with curved rigid 80° stem, automatic antidrip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2” BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Power	3 x 1,5 V
Weight	1,4 kg
Series	Neptune X

request info

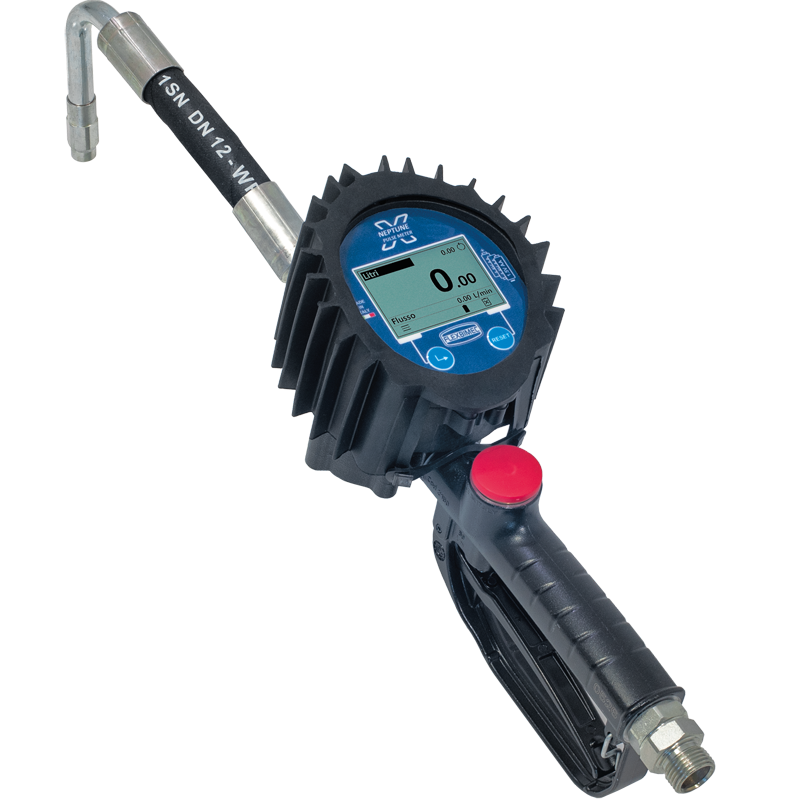

2964/X

Electronic oval gears flow meter for oil, series NEPTUNE X, with control gun, flexible rubber outlet, ø 1/2”, with curved rigid 80° stem, automatic antidrip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	Neptune X

request info

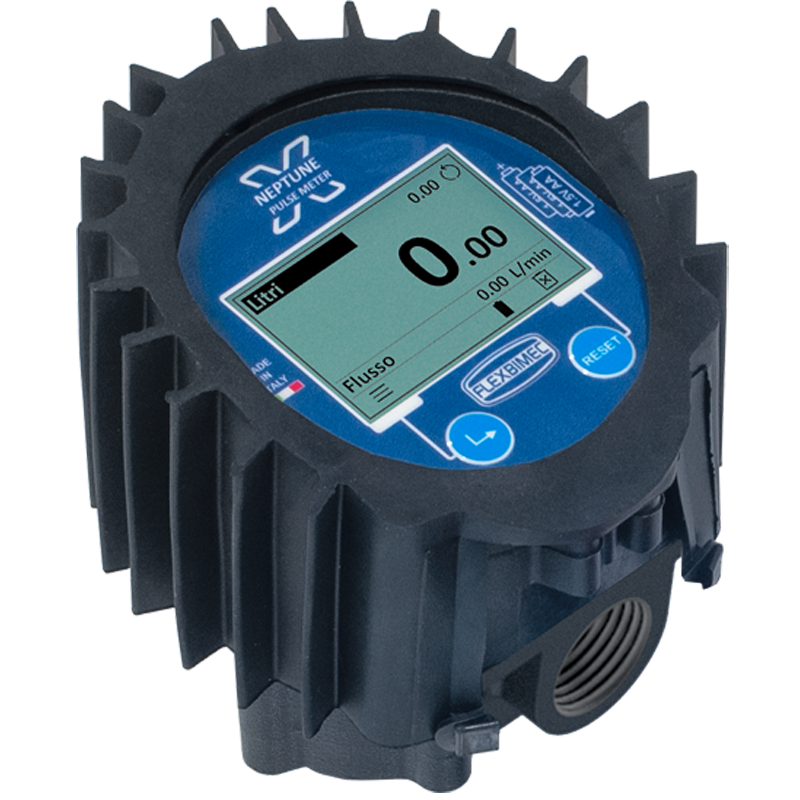

2967/AG/X

Electronic oval gears flow meter for antifreeze, series NEPTUNE X, suitable for inline applications.

Additional information

Connections	F 1/2” BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	0,83 kg
Series	Neptune X
Power	3 x 1,5 V

request info

2967/X

Electronic oval gears flow meter for oil, series NEPTUNE X, suitable for inline applications, connections 1/2” BSP (F).

Additional information

Connections	F 1/2” BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	0,83 kg
Series	Neptune X
Power	3 x 1,5 V

request info

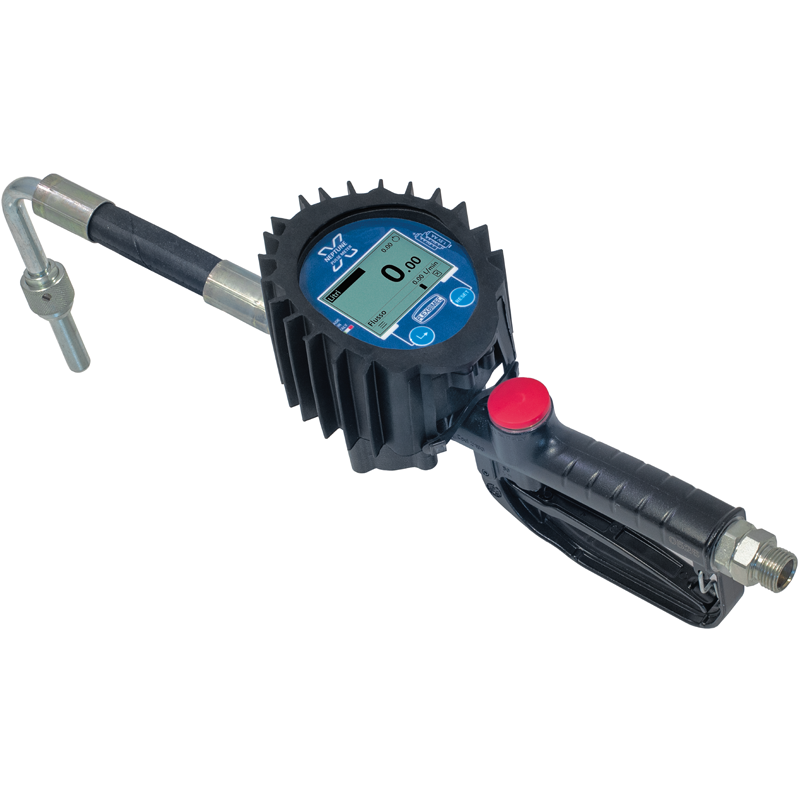

2968/X

Electronic oval gears flow meter for oil, series NEPTUNE X, with control gun, flexible rubber outlet, with curved rigid 80° stem, automatic antidrip nozzle.

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	Neptune X

request info

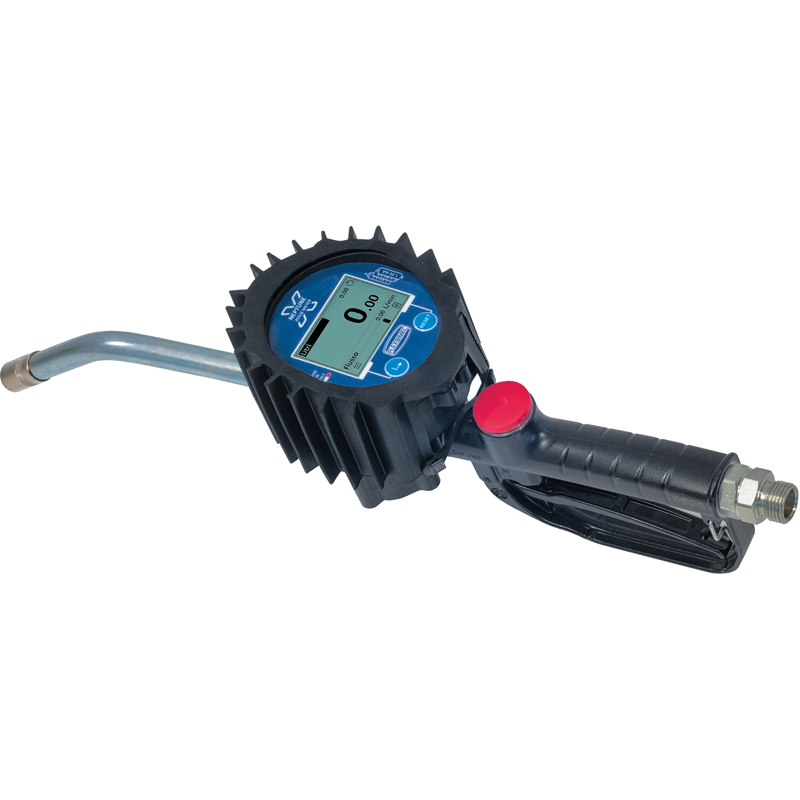

2969/X

Electronic oval gears flow meter for oil, series NEPTUNE X, with control gun, rigid outlet ø 16 mm, automatic anti-drip nozzle.

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	Neptune X

request info

Quality and maximum performance

Product catalog — Explore

VERSATILITY WITHOUT BORDERS

Serving a wide range of industries

FLEXBIMEC equipment is used in repair shops for cars, industrial vehicles, operating machinery, agricultural machinery, motorcycles, auto dealerships, mechanical industries, car washes, and boating.
