Electronic oil flow meters series Neptune X

Download the catalog

Don't forget to download the general catalog to get all the information you need!

Product catalog — Download

[wpf-filters id=4]

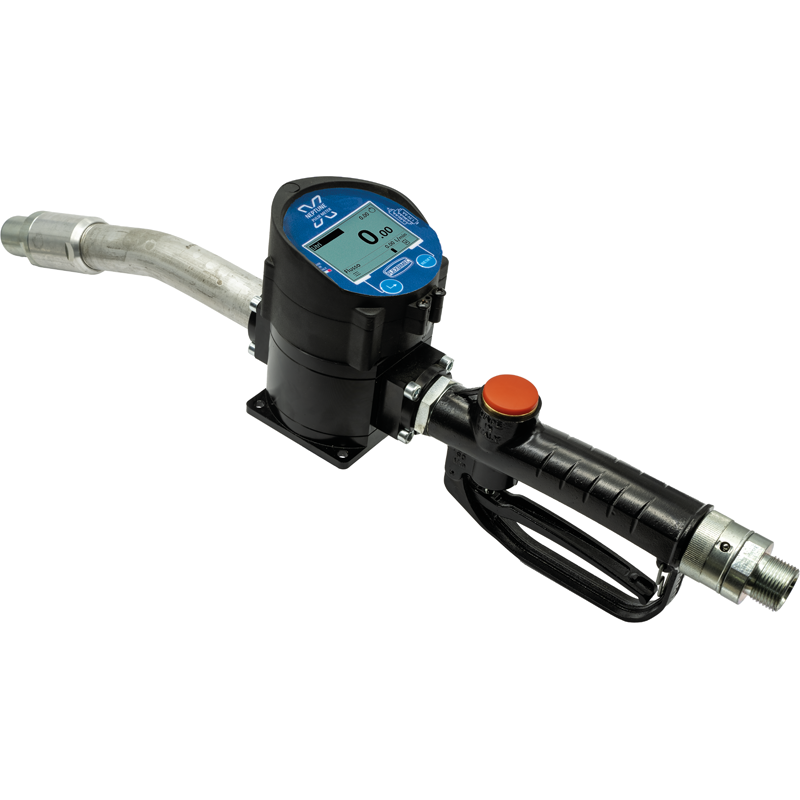

2634/X

Electronic oval gears high delivery flow meter for oil, series Neptune X HFlow, with control gun ø 3/4”, trigger guard, cartridge filter, rigid outlet, automatic anti-drip nozzle and 3/4” BSP (M) inlet swivel. This high volume series allows to accelerate the oil supplies by the use of a flow meter that guarantees high accuracy measurement even at high flow rates.

Additional information

Connections	M 3/4″ BSP
Flow rate min - max	10 – 90 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+ / – 1%
Resettable maximum total	9999 l
Total max non resettable	9999 l
Power	3 x 1,5 V
Weight	3,7 kg
Series	Neptune X HFlow

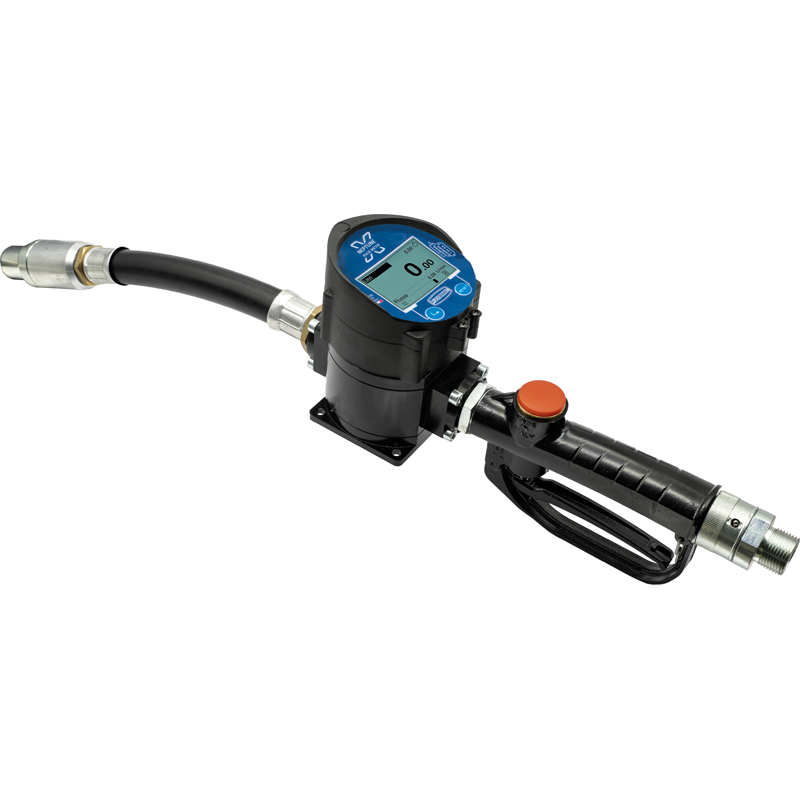

2635/X

Digital oval gear oil flow meter Neptune X HFlow series with dispensing gun, Ø 3/4‘ hose, non-drip fitting and 3/4’ (M) BSP inlet swivel joint.

Additional information

Connections	M 3/4″ BSP
Flow rate min - max	10 – 90 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+ / – 1%
Resettable maximum total	9999 l
Total max non resettable	9999 l
Power	3 x 1,5 V
Weight	3,7 kg
Series	Neptune X HFlow

2706

Rubber protection guard. Provides a good protection against any shocks.

Additional information

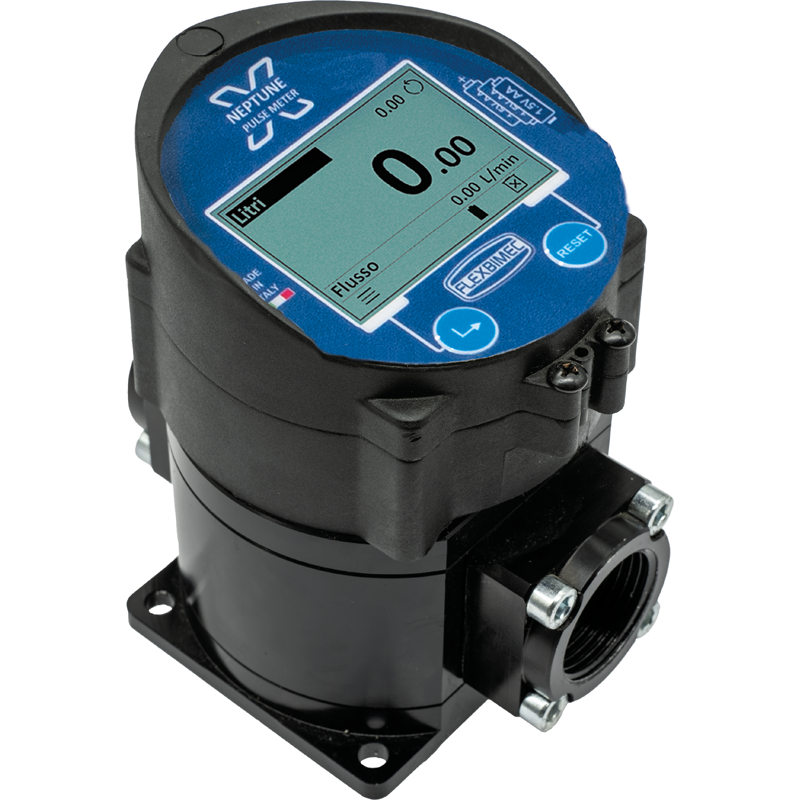

2751/X

Electronic oval gears high delivery flow meter for oil, series NEPTUNE X HFLOW, suitable for inline applications, connections 1” BSP (F).

Additional information

Connections	F 1” BSP
Flow rate min - max	20 – 100 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	40 bar (580 psi)
Precision	+ / – 1%
Resettable maximum total	9999 l
Total max non resettable	9999 l
Power	3 x 1,5 V
Weight	1,6 kg
Series	Neptune X HFlow

2752/X

Electronic oval gears high delivery flow meter for oil, series NEPTUNE X HFLOW, suitable for inline applications, connections 1” 1/4 BSP (F).

Additional information

Connections	F 1’1/4 ” BSP
Flow rate min - max	20 – 150 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	40 bar (580 psi)
Precision	+ / – 1%
Resettable maximum total	9999 l
Total max non resettable	9999 l
Power	3 x 1,5 V
Weight	1,8 kg
Series	Neptune X HFlow

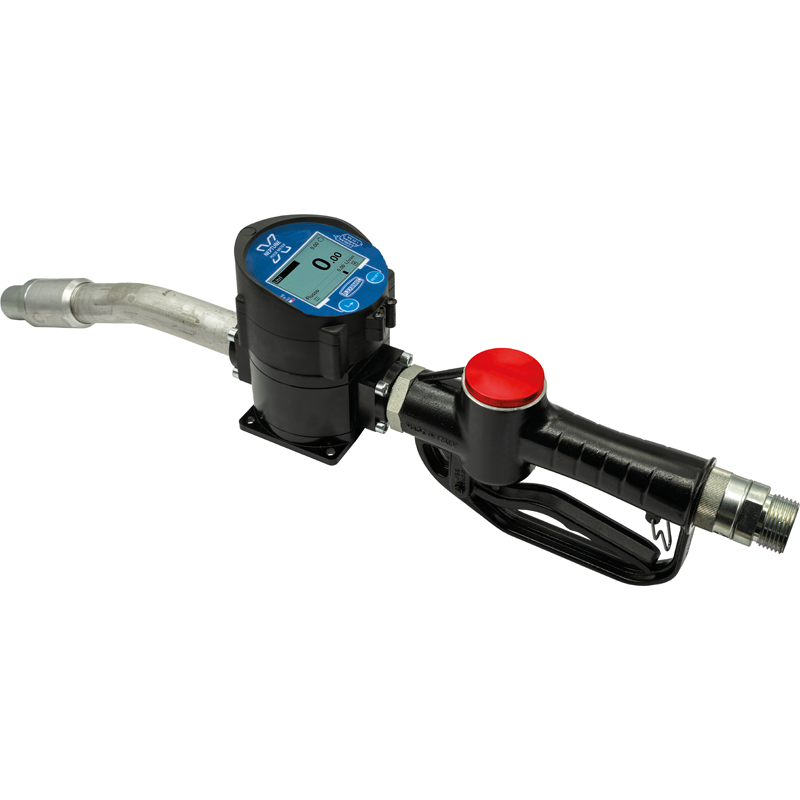

2754/X

Electronic oval gears high delivery flow meter for oil, series NEPTUNE X HFLOW, with control gun ø 1”, trigger guard, cartridge filter, rigid outlet ø 20 mm, automatic anti-drip nozzle and 1” BSP (M) inlet swivel. This high volume series allows to accelerate the oil supplies by the use of a flow meter that guarantees high accuracy measurement even at high flow rates.

Additional information

Connections	M 1” BSP
Flow rate min - max	20 – 100 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	100 bar (1450 psi)
Precision	+ / – 1%
Resettable maximum total	9999 l
Total max non resettable	9999 l
Power	3 x 1,5 V
Weight	3,9 kg
Series	Neptune X HFlow

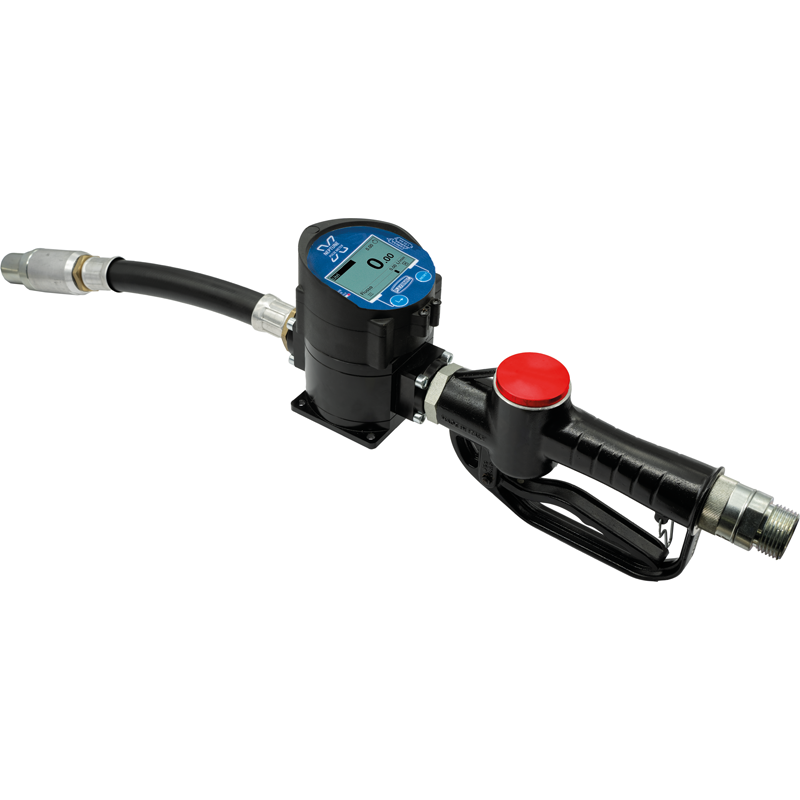

2755/X

Electronic oval gears high delivery flow meter for oil, series NEPTUNE X HFLOW, with control gun ø 1”, trigger guard, cartridge filter, flexible rubber outlet ø 1”, automatic anti-drip nozzle and 1” BSP (M) inlet swivel.

Additional information

Connections	M 1” BSP
Flow rate min - max	20 – 100 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	100 bar (1450 psi)
Precision	+ / – 1%
Resettable maximum total	9999 l
Total max non resettable	9999 l
Power	3 x 1,5 V
Weight	3,9 kg
Series	Neptune X HFlow

2810

Electronic oval gears flow meter for oil, series MARS, suitable for inline applications, connections 1/2” BSP (F)

Additional information

Connections	F 1/2” BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	0,60 kg
Power	3 x 1,5 V
Series	SERIES 4TT MARS – JUPITER

2810/RF

Electronic oval gears flow meter for oil, series JUPITER, suitable for inline applications, connections 1/2” BSP (F).

Additional information

Connections	F 1/2” BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	0,60 kg
Series	SERIES 4TT MARS – JUPITER
Power	3 x 1,5 V

2811

Electronic oval gears flow meter for oil, series MARS, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Series	SERIES 4TT MARS – JUPITER
Power	3 x 1,5 V

2811/RF

Electronic oval gears flow meter for oil, series JUPITER, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	SERIES 4TT MARS – JUPITER

2812

Electronic oval gears flow meter for oil, series MARS, with control gun, fl exible rubber outlet, ø 1/2”, with curved rigid 90° stem, automatic antidrip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	SERIES 4TT MARS – JUPITER

2812/RF

Electronic oval gears flow meter for oil, series JUPITER, with control gun, flexible rubber outlet, ø 1/2”, with curved rigid 90° stem, automatic antidripnozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	SERIES 4TT MARS – JUPITER

2813

Electronic oval gears fl ow meter for antifreeze, series MARS, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	SERIES 4TT MARS – JUPITER

2813/RF

Electronic oval gears flow meter for antifreeze, series JUPITER, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	70 bar (1015 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	1,4 kg
Power	3 x 1,5 V
Series	SERIES 4TT MARS – JUPITER

2815

Electronic oval gears preset flow meter for oil, series MERCURY, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	50 bar (725 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	2 kg
Power	3 x 1,5 V
Series	SERIES 4TTPS MERCURY – URANUS

2815/RF

Electronic oval gears preset flow meter for oil, series URANUS, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	50 bar (725 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	2 kg
Power	3 x 1,5 V
Series	SERIES 4TTPS MERCURY – URANUS

2816

Electronic oval gears preset flow meter for oil, series MERCURY, with

control gun, flexible rubber outlet, . 1/2”, with curved rigid 90Åã stem,

automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	50 bar (725 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	2 kg
Power	3 x 1,5 V
Series	SERIES 4TTPS MERCURY – URANUS

2816/RF

Electronic oval gears preset flow meter for oil, series URANUS, with control gun, flexible rubber outlet, ø 1/2”, with curved rigid 90° stem, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	50 bar (725 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	2 kg
Power	3 x 1,5 V
Series	SERIES 4TTPS MERCURY – URANUS

2817

Electronic oval gears preset flow meter for antifreeze, series MERCURY, with control gun, rubber protection guard, trigger guard, rigid outlet ø 12 mm, automatic anti-drip nozzle and inlet swivel 1/2” BSP (M).

Additional information

Connections	M 1/2″ BSP
Flow rate min - max	1 – 20 l/min
Operating temperature range	+ 5°C / + 50°C
Max working pressure	50 bar (725 psi)
Precision	+/- 0,5%
Resettable maximum total	99999 l
Total max non resettable	99999 l
Weight	2 kg
Power	3 x 1,5 V
Series	SERIES 4TTPS MERCURY – URANUS
