Grease guns and cartridges
Download the catalog
Don't forget to download the general catalog to get all the information you need!
4400
Lever action grease gun, suitable for the use with bulk grease or with grease cartridges.
With plastic flexible outlet hose ø ext. 8 mm x 300 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
Suitable for grease up to a viscosity of NLGI 2.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4400/4
Lever action grease gun, suitable for the use with bulk grease or with grease cartridges.
With plastic flexible outlet hose ø ext. 8 mm x 300 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
Suitable for grease up to a viscosity of NLGI 2.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4400/4DE
Lever action grease gun, suitable for the use with bulk grease or with grease cartridges.
With plastic flexible outlet hose ø ext. 8 mm x 300 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
Suitable for grease up to a viscosity of NLGI 2.
The art. no. 4400/4DE is equipped with German connection.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4450
Pneumatic grease gun, suitable for the use with bulk grease or with grease cartridges. With plastic flexible outlet hose ø ext. 8 mm x 300 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
It is a single action mechanism (non-continuous grease supply): when activating the trigger, the internal piston moves and supplies grease; when the trigger is released, the piston returns in its initial position.
By repeating this procedure the grease can be dispensed.
Compressed air pressure: 4 – 8 bar. Suitable for grease up to a viscosity of NLGI 2.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4450/4
Pneumatic grease gun, suitable for the use with bulk grease or with grease cartridges. With plastic flexible outlet hose ø ext. 8 mm x 300 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
It is a single action mechanism (non-continuous grease supply): when activating the trigger, the internal piston moves and supplies grease; when the trigger is released, the piston returns in its initial position.
By repeating this procedure the grease can be dispensed. Compressed air pressure: 4 – 8 bar. Suitable for grease up to a viscosity of NLGI 2.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4450/C
Pneumatic grease gun with a continous grease fl ow, suitable for the use with bulk grease or with grease cartridges.
With rigid outlet pipe 150 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
Compressed air pressure: 2 – 8 bar. Suitable for grease up to a viscosity of NLGI 2.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4408
One-hand-operated grease gun, professional version, suitable for the use with bulk grease or with grease cartridges.
With plastic flexible outlet hose ø ext. 8 mm x 300 mm length, M10x1, and 4 – jaws – hydraulic coupler.
The grease gun can be used in a “high volume” or in a “high pressure” mode.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4452
Electric grease gun with two 18 VDC – batteries, suitable for the use with bulk grease or with grease cartridges. With plastic flexible outlet hose ø ext. 8 mm x 1000 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
The grease is dispensed continuously; by pushing the trigger of the grease gun, the internal gears start moving and the grease is supplied.
When the trigger is released again, the grease flow stops.
Batteries: 18 VDC (1300 mAH), time for recharging: 1 hour (according to the ROHS – directive).
Batteries recharger: 230 VAC (18 VDC, 50 Hz).
Supplied in a plastic case with a lever grease gun head for the use as lever grease gun.
Suitable for grease up to a viscosity of NLGI 2.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4452/4
Electric grease gun with two 18 VDC – batteries, suitable for the use with bulk grease or with grease cartridges. With plastic flexible outlet hose ø ext. 8 mm x 1000 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
The grease is dispensed continuously; by pushing the trigger of the grease gun, the internal gears start moving and the grease is supplied.
When the trigger is released again, the grease flow stops.
Batteries: 18 VDC (1300 mAH), time for recharging: 1 hour (according to the ROHS – directive).
Batteries recharger: 230 VAC (18 VDC, 50 Hz).
Supplied in a plastic case with a lever grease gun head for the use as lever grease gun.
Suitable for grease up to a viscosity of NLGI 2.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |

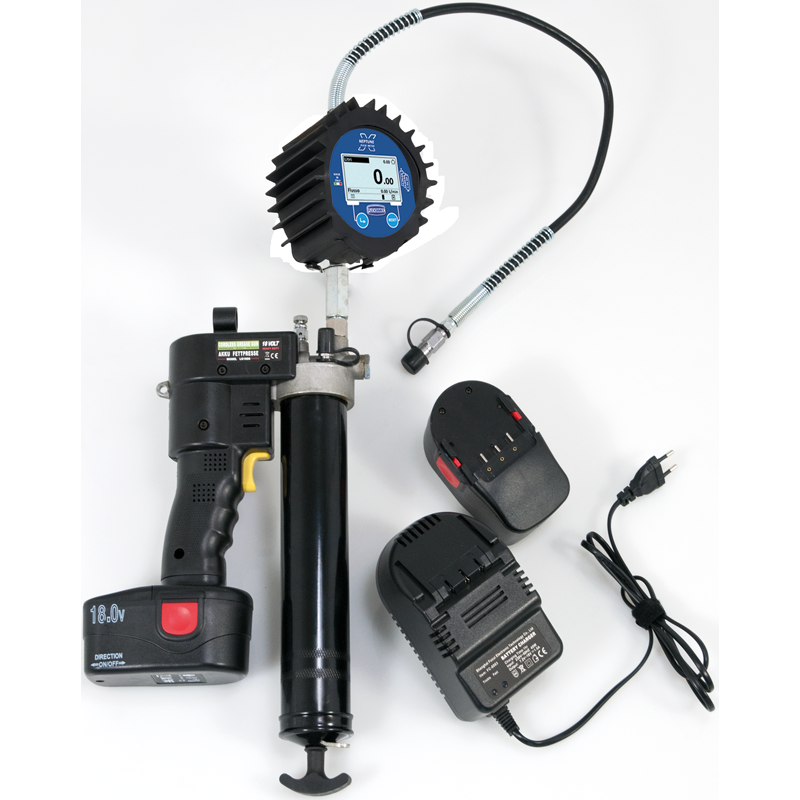

4453
Electric grease gun with 18 VDC – battery, art.no. 4452/4, but additionally equipped with an electronic oval gears flow meter for grease, art.no. 4291/X .
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Diameter suitable grease cartridge | |
| Length suitable grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4411
Two-hand-operated grease gun, suitable for the use with 500 g – screw-in grease cartridges.
With hose bracket, plastic flexible outlet hose ø ext. 8 mm x 300 mm length, M 10×1, and 4 – jaws – hydraulic coupler.
Lubrication by vacuum generation.
Additional information
| Max flow rate | |
|---|---|
| Max outlet pressure (bar) | |
| Capacity grease cartridge | |
| Weight | |
| Dimensions (W-P-H) (mm) |
4405
Cartridge with lithium grease, NLGI 2, with 600 g capacity. Diameter 56 mm, length 300 mm. Kinematic viscosity of the basing oil: 150 cSt, 40°C. Temperature range of use: -20°C – +120°C. According DIN 51502 K 2 K-20.
Packs of 15 pieces
Additional information
4406
Cartridge with lithium grease, NLGI 2, with 400 g capacity.
Diameter 52 mm, length 235 mm. Kinematic viscosity of the basing oil: 150 cSt, 40°C. Temperature range of use: -20°C – +120°C.
According DIN 1284.
Packs of 15 pieces.
Additional information
