End - of - life vehicle drainage equipment
Download the catalog
Don't forget to download the general catalog to get all the information you need!
3025
Evacuation unit for shock absorbers, composed of a drill machine and an air-operated suction unit. The drill gun allows to drill through the shock absorbers and the suction unit simultaneously sucks the hydro steer oil into a container of 24 l capacity.
Additional information
| Power | |
|---|---|
| Max vacuum | |
| Capacity collection container | |
| Weight | |
| Dimensions (W-P-H) (mm) |
3100
Vehicle ramp in painted steel for vehicle placement, with working platform composed of spill containment safety floor for the collection of eventually leaking fluids.
The vehicle must be positioned by a forklift.
Dimensions (LxWxH): 4900 x 2000 x 2000 mm.
Bearing capacity: 3000 kg.
Additional information
3101-3102
Mod. 3101
Single-post lift for vehicles, specifically manufactured for the use in end – of – life vehicle
drainage.
Equipped with electro-hydraulic lifting arms and column with lateral brackets for an
optional mounting of swivel arms.
Lifting height min./max. 290/2000 mm.
Bearing capacity: 3500 kg.
Weight: 600 kg.
Mod. 3102
Spill containment safety floor for the collection of eventually leaking fluids. Composed of 6 individual modules.
Dimensions single module (LxWxH): 1500 x 900 x 30 mm.
Total dimensions (LxWxH): 4500 x 1800 x 30 mm.
Additional information
3106
Waste oil gravity draining kit, consisting of two metal collection bowls, including removable anti splash grid and height-adjustable, telescopic tube, ball valves and hydraulic connectors for the connection of the suitable suction equipment. With wall mounted swivel arms, for the installation on the vehicle ramp or on the column of the single-post lift (art. nos. 3100 and 3101).
Additional information
3111
Pneumatic tank drilling machine, portable version.
Allows to carry out the evacuation of petrol or diesel in vehicles in an easy, fast and safe way by drilling through the tank.
The machine is equipped with an interchangeable, non-arcing drill bit, an in-line fi lter with strainer, a
flow control tube with transparent insert and connections for the discharge of the fuel by gravity into a can or by the suitable suction equipment into a collection tank. The drill bit is activated by using a special, pneumatic drill machine with a low number of rotations and with reversal of the rotating direction.
Additional information
3112
Mobile waste oil gravity drainer with 2 collection bowls in painted steel of 10 l capacity incl. removable anti splash grid, for a simultaneous drainage of motor oil and transmission oil. The unit can be discharged pneumatically by connecting it to compressed air through a discharge hose with curved outlet tube. On demand also available with hydraulic quick connector for a connection to a pneumatic waste oil evacuation kit.
3113
Pneumatic tank drilling machine, mobile version. Same as art.no. 3111, but mounted on a height-adjustable device with a 4-castors base and connectable to a swivel arm for the installation on the vehicle ramp or on the column of the single-post lift (art. nos. 3100 and 3101).
Weight: 35 kg.
Additional information
3115
Mobile suction unit for petrol, equipped with pneumatic, rotary gear pump in stainless steel, pressure regulator and air filter with moisture separator, suction hose, kit of suction probes in different diameters, storage bowl, two wheels trolley and 20 l – plastic can for collection of the sucked petrol. The unit is equipped with an earth cable to enable an electrostatic discharge and is constructed in accordance with directive ATEX 2014/34/EU.
3118

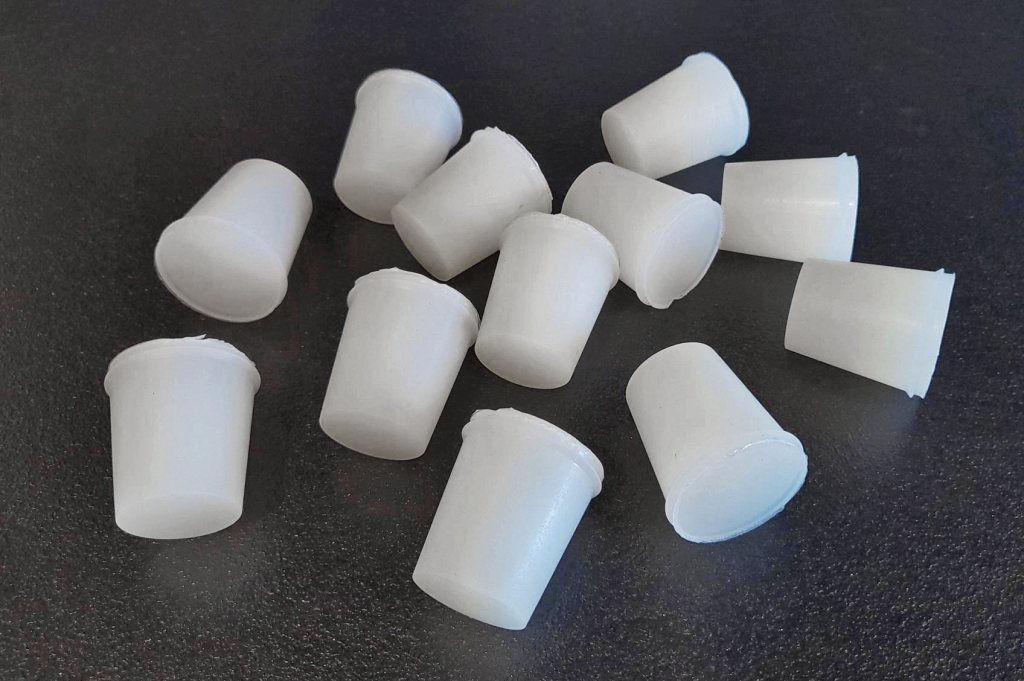

Conical silicone closing plugs, ø 7×12 mm, for sealing the drill holes.
Packaging unit: 100 pieces.
Additional information
3122-3123-3124
Pneumatic waste fluids suction kit, composed of a solid mounting shelf in painted steel
installed on a spill containment pallet, pneumatic suction pumps with accessories,
vacuometer for the control of the suction process, automatic rewind, spring-driven
hose reels with 5 m – suction hoses ø 3/4”, (mounted at the bottom of the shelf) (or
alternatively 10 m – suction hoses ø 1/2”), hydraulic quick couplings, suction probes in
different diameters, lance for boring through the radiator, couplings for the suction of
brake fluid and 3 m – connection hoses to the collection tanks.
Dimensions (LxWxH): 1350 x 830 x 1700 mm.
Mod. 3122 Suction kit for 2 fluids
Mod. 3123 Suction kit for 3 fluids
Mod. 3124 Suction kit for 4 fluids
In order to install the suitable pumps and accessories it is important to specify when
ordering the fl uid type to be evacuated by choosing among the following: motor oil, gear
oil, hydraulic oil, windshield washer fl uid, brake fl uid, antifreeze, diesel, petrol.
Additional information
3122C-3123C-3124C
Pneumatic waste fl uids suction kit, cabinet version, composed of a solid mounting shelf
in painted steel installed on a spill containment pallet, a metal and lockable cabinet with 2 doors and 4 hose outlets with roller assemblies, pneumatic suction pumps with accessories, vacuometer for the control of the suction process, automatic rewind, spring-
driven hose reels with 10 m – suction hoses ø 1/2”, hydraulic quick couplings, suction
probes in diff erent diameters, lance for boring through the radiator, couplings for the suction of brake fl uid and 3 m – connection hoses to the collection tanks. 3 mt.
Dimensions (LxWxH): 1350 x 830 x 1700 mm.
Mod. 3122C Suction kit for 2 fluids
Mod. 3123C Suction kit for 3 fluids
Mod. 3124C Suction kit for 4 fluids
In order to install the suitable pumps and accessories it is important to specify when
ordering the fl uid type to be evacuated by choosing among the following: motor oil, gear
oil, hydraulic oil, windshield washer fl uid, brake fl uid, antifreeze, diesel, petrol.
Additional information
3125-3126-3127
Pneumatic waste fluids suction kit, composed of a solid mounting shelf in painted steel
installed on a spill containment pallet, pneumatic suction pumps with accessories,
vacuometer for the control of the suction process, automatic rewind, spring-driven hose
reels with 10 m – suction hoses ø 1/2” (mounted on top of the shelf) hydraulic quick
couplings, suction probes in different diameters, lance for boring through the radiator,
couplings for the suction of brake fluid and 3 m – connection hoses to the collection tanks.
Lenght 3 mt.
Dimensions (LxWxH): 1350 x 830 x 2350 mm.
Mod. 3125 Suction kit for 4 fluids
Mod. 3126 Suction kit for 3 fluids
Mod. 3127 Suction kit for 2 fluids
In order to install the suitable pumps and accessories it is important to specify when
ordering the fluid type to be evacuated by choosing among the following: motor oil, gear
oil, hydraulic oil, windshield washer fluid, brake fluid, antifreeze, diesel, petrol.
Additional information
3129
Electronic airbag activating and blasting unit BOOM-BAG, enables a safe and easy dismantling of all airbags in a vehicle. Suitable for all vehicle models. The unit can be used immediately and one operator is sufficient to carry out the dismantling. The unit is packed in a plastic case and includes also an electric cable with alligator clamps for battery connection and a kit with cables and push terminals for the activation of single or double airbags.
3130
Electric glass cutter, mobile, for a safe and versatile cutting of the windshield glass of
end-of-life vehicles.
− Electric mechanism with special high speed drill machine and diamond milling
cutter;
− Conveyor for the evacuation of the generated glass dust;
− Vacuum cleaner with stainless steel container, power 1250 W, collection capacity 36 l,
equipped with a 10 m power cable
Additional information
3132+3025
Evacuation unit for shock absorbers, composed of a drill machine and an air-operated suction unit. The drill gun allows to drill through the shock absorbers and the suction unit simultaneously sucks the hydro steer oil into a container of 24 l capacity.
3134
Mobile evacuation unit for LPG and methane cylinders. LPG cylinders: recovery of the liquid part, combustion of the remaining gaseous part and final washing with nitrogen for total safety. Methane cylinders: combustion of the residual gas and final washing with nitrogen for total safety. Nitrogen cylinder not supplied. In accordance with Directive ATEX – group II – category 2 – GD 70°.
Additional information
| Nominal thermal power | |
|---|---|
| Max fl ow rate LPG pump | |
| Weight | |
| Dimensions (W-P-H) (mm) |
3134A
Mobile unit for the safe combustion of residual LPG and methane from gas cylinders. In the first cycle the gas (LPG or methane) is combusted, in the second cycle then the washing out of the cylinder (cylinder not included) with nitrogen can be made so that the empty cylinder can be used again. In accordance with CE-directives.
Additional information
| Nominal thermal power | |
|---|---|
| Weight | |
| Dimensions (W-P-H) (mm) |
3134G
Mobile unit for the safe combustion of residual LPG from gas cylinders. In the first cycle the gas is combusted, in the second cycle then the washing out of the cylinder (cylinder not included) with nitrogen can be made. In accordance with CE-directives.
Additional information
| Nominal thermal power | |
|---|---|
| Weight | |
| Dimensions (W-P-H) (mm) |
3134GP
Mobile unit for the safe combustion of residual LPG from gas cylinders. In the first cycle the liquid part of the gas is recovered by means of a pump and the residual gaseous part is combusted, in the second cycle then the washing out of the cylinder (cylinder not included) with nitrogen can be made. In accordance with CE-directives.
Additional information
| Nominal thermal power | |
|---|---|
| Max fl ow rate LPG pump | |
| Weight | |
| Dimensions (W-P-H) (mm) |
3134M
Mobile unit for the safe combustion of residual methane from gas cylinders. In the first cycle the gas is combusted, in the second cycle then the washing out of the cylinder (cylinder not included) with nitrogen can be made. In accordance with CE-directives
Additional information
| Nominal thermal power | |
|---|---|
| Weight | |
| Dimensions (W-P-H) (mm) |
